Kia Cadenza YG: Intake And Exhaust System / Muffler Components and Components Location

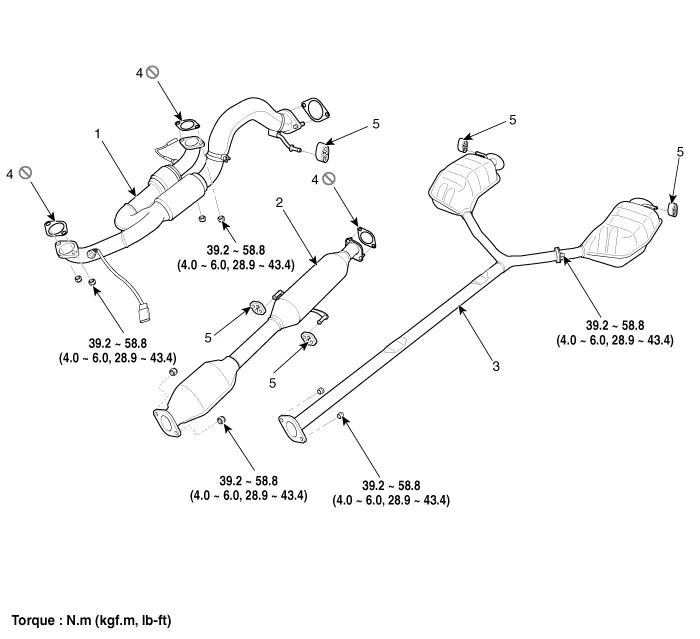

| Components |
| 1. Front muffler 2. Catalytic converter & center muffler assembly 3. Main muffler | 4. Gasket 5. Hanger |
Removal and Installation VIS 1 [Intake Manifold] 1. Disconnect the battery "-" terminal. 2. Remove the engine cover. 3. Disconnect the VIS actuator hose (A).
Removal and Installation Front Muffler 1. Disconnect the battery negative terminal. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly – “Engine Room Under Cover”) 3.
