Kia Cadenza YG: Automatic Transaxle Control System / Output Speed Sensor Troubleshooting
Kia Cadenza YG 2016-2021 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Troubleshooting
| Signal Waveform |

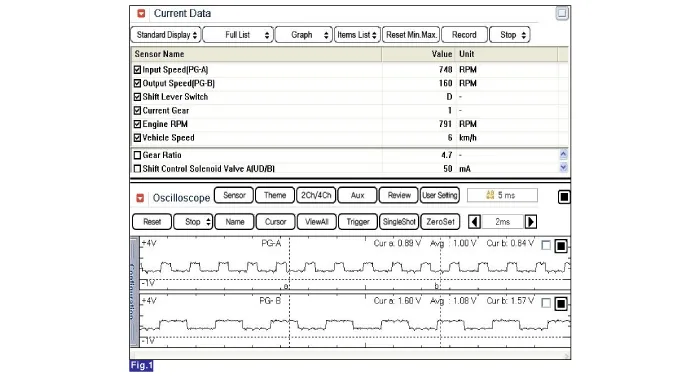

Fig 1) Input/Output speed sensor at low speed

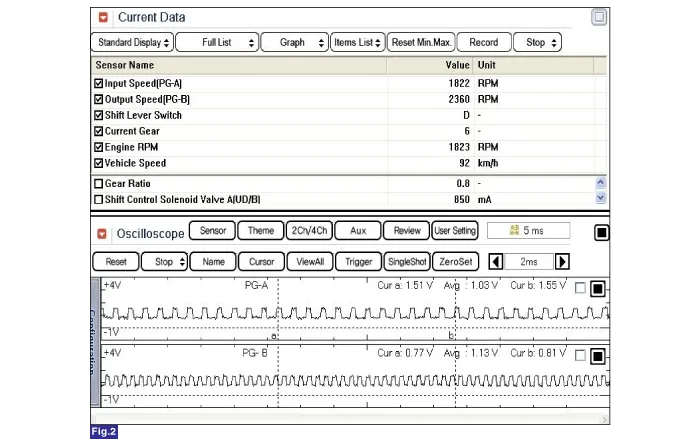

Fig 2) Input/Output speed sensor at high speed
Circuit Diagram
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A).
