Kia Cadenza YG: Cylinder Block / Rear Oil Seal Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal Components and Components Location

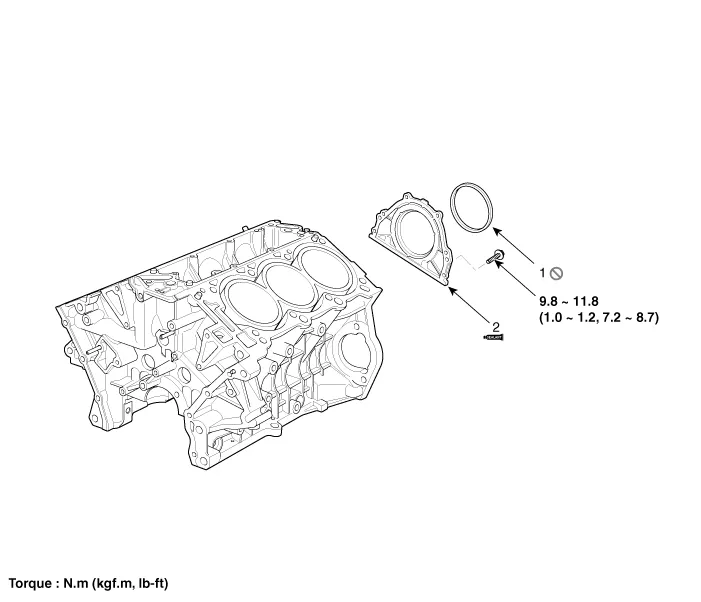

Components

1. Rear oil seal
2. Oil seal case

    Removal and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (A) and the drive plate (B).

    Removal 1. Remove the transaxle assembly. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate. (Refer to Cylinder Block - "Drive Plate") 3.
