Kia Cadenza YG: Electric Power Steering / Steering Gear box Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Steering System / Electric Power Steering / Steering Gear box Components and Components Location

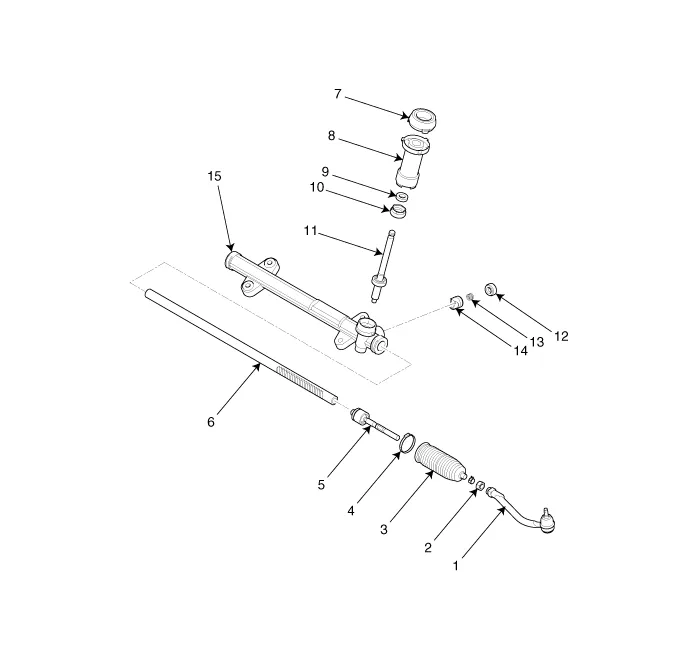

Components

1. Tie-rod end
2. Lock nut
3. Bellows
4. Bellows clip
5. Tie rod

6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug

11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing
