Kia Cadenza YG: Surround View Monitoring (SVM) System / Surround View Monitoring Unit Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Surround View Monitoring (SVM) System / Surround View Monitoring Unit Components and Components Location

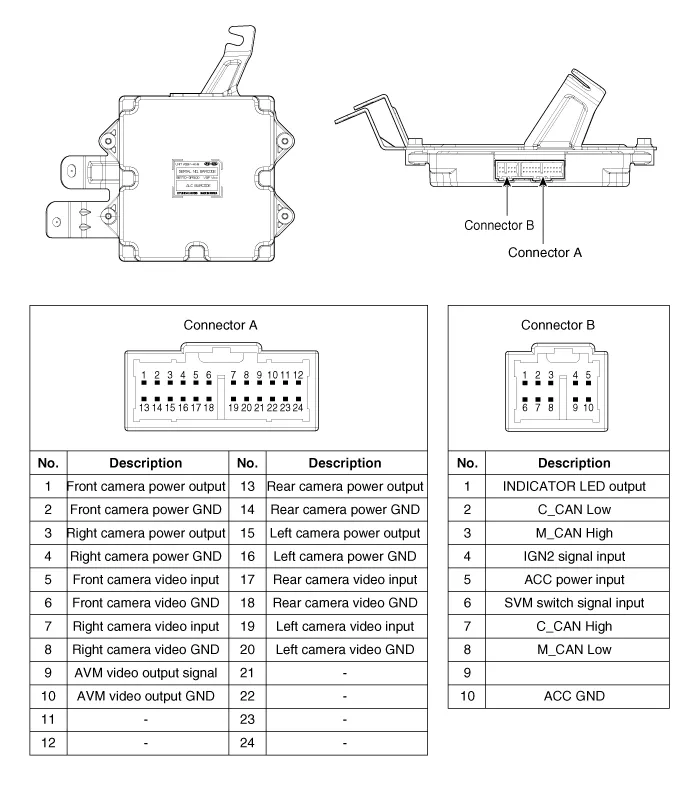

Components

    Inspection Tolerance Calibration Tolerance calibration compensates for the error margins of surround view video that occur due to the installation tolerance when the four cameras that comprise the SVM system are installed.

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing. (Refer to Body - "Glove Box Housing") 3. Remove the SVM unit (B) after disconnecting the connectors (A) and mounting bolts.
