Kia Cadenza YG: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic Diagrams

Kia Cadenza YG 2016-2021 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic Diagrams

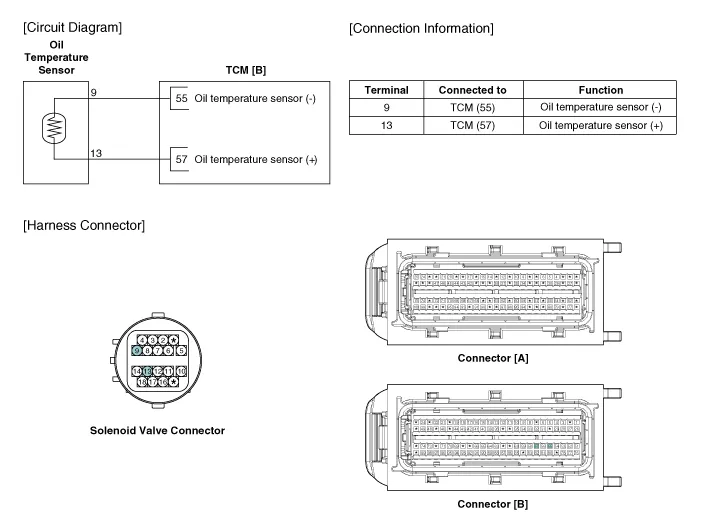

Circuit Diagram

    Specifications ▷ Type: Negative Thermal Coefficient(NTC) Type Temp.[(°C)°F]Resistance (kΩ)(-40)-4048.1(-20)-4.015.6(0)32.05.88(20)68.02.51(40)104.

    Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A).
