Kia Cadenza: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic Diagrams

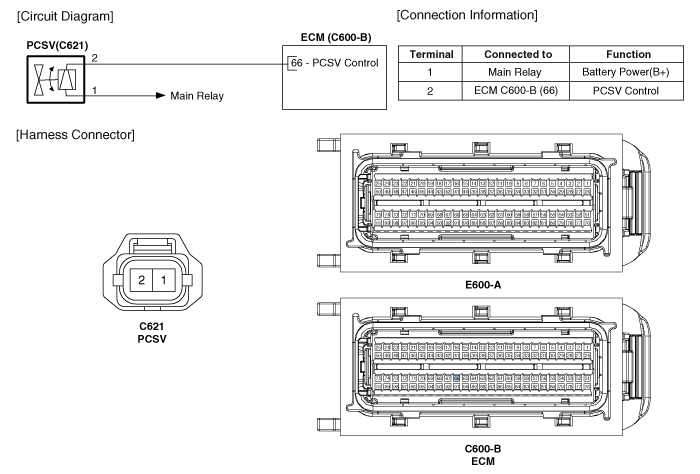

Circuit Diagram

Purge Control Solenoid Valve (PCSV) Specifications
Specification ItemSpecificationCoil Resistance (Ω)22.0 ~ 26.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4. Check that the resistance is within the speci ...
