Kia Cadenza YG: Cooling System / Radiator Components and Components Location
| Components |

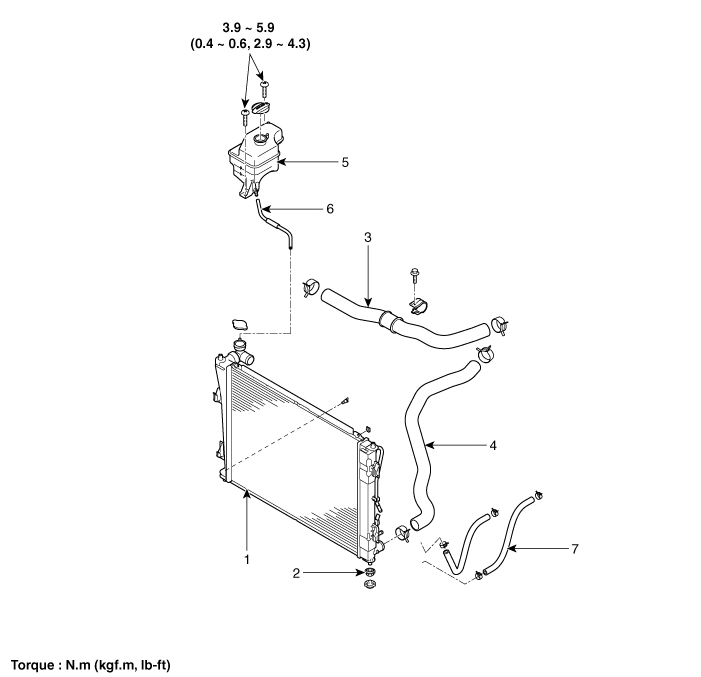

| 1. Radiator 2. Mounting insulator 3. Radiator upper hose 4. Radiator lower hose | 5. Coolant reservoir tank 6. Over flow hose 7. ATF cooler hose |
Removal and Installaton Cooling Fan Assembly 1. Disconnect the battery negative terminal. 2. Remove the air duct (A). 3. 3. Loosen the upper hose fixing bolt (A), and disconnect the fan motor connector (B).
Removal and Installaton 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - “Engine Room Under Cover”) 2. Drain the coolant.
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Schematic Diagrams
Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.
Kia Cadenza YG 2016-2021 Service Manual: Surround View Monitoring Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover. (Refer to Body - "Floor Console Assembly") 3. Disconnect the console upper cover connector (A). 4. Remove the cup holder assembly (A) after loosening the mounting screws.
