Kia Cadenza: Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

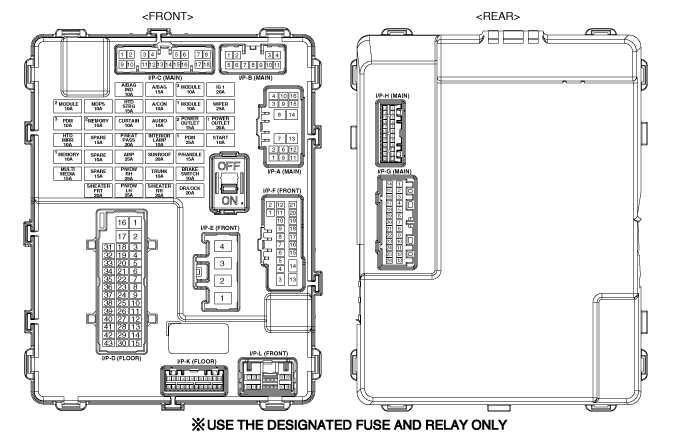

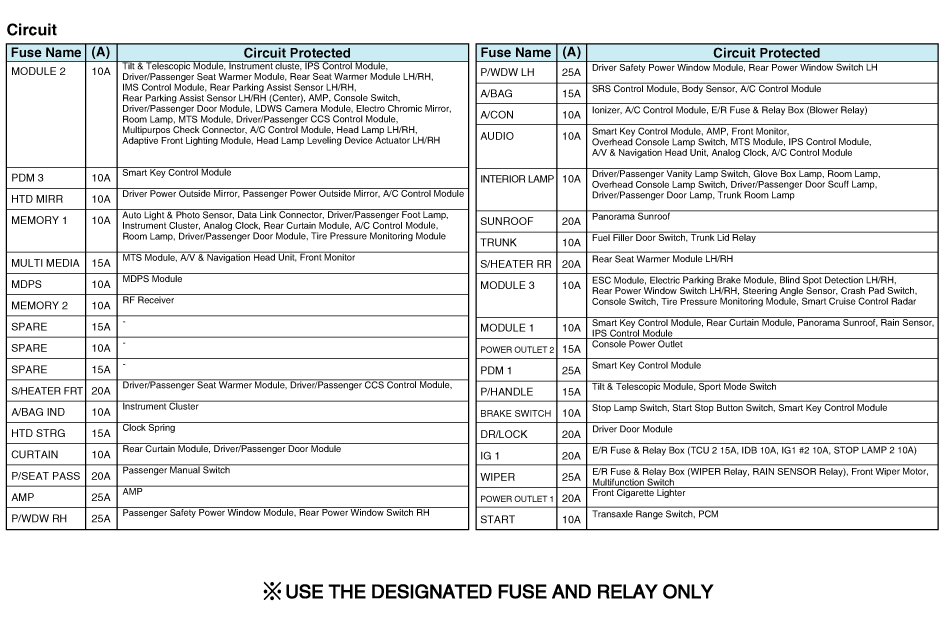

Components

Relay Box (Engine Compartment) Repair procedures
Inspection Power Relay Test (Type A)     – Do not use pliers. – Pliers will damage the relays, which could cause the engine to stall or not start. ...

Relay Box (Passenger Compartment) Repair procedures
Fuse Inspection 1. Be sure there is no play in the fuse holders, and that the fuses are held securely. 2. Are the fuse capacities for each circuit correct? 3. Are there any blown fuses? I ...
