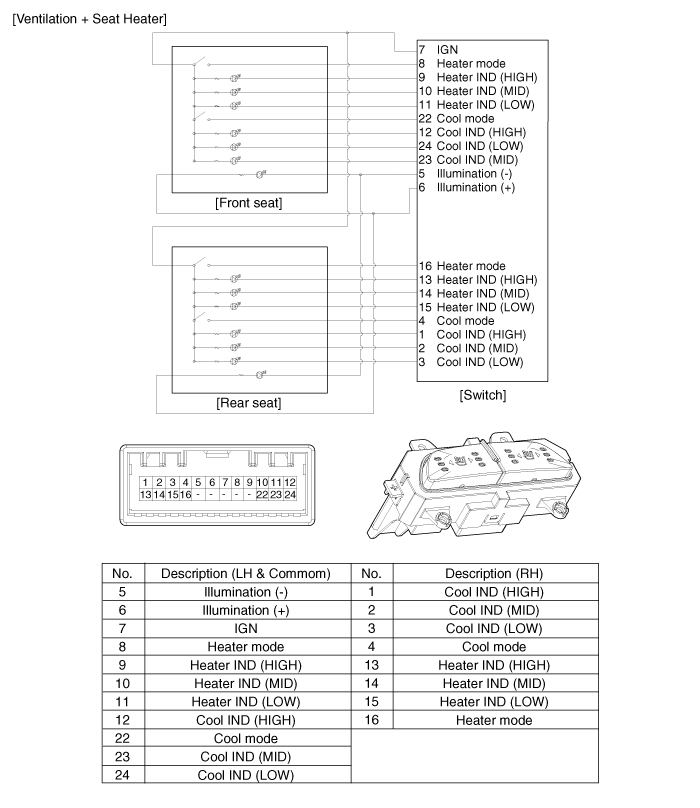

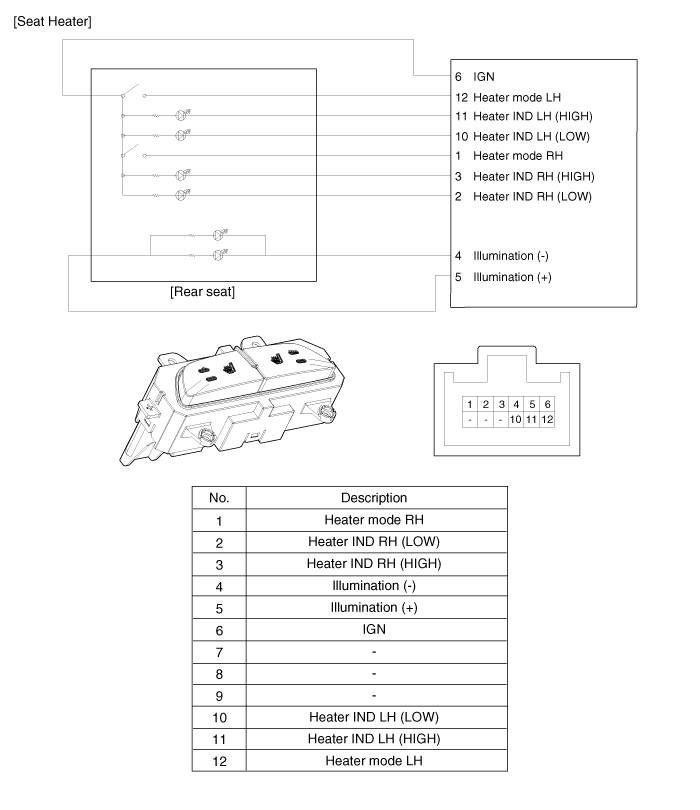

Kia Cadenza YG: Seat Electrical / Seat Heater Switch Schematic Diagrams
| Circuit Diagram |
Inspection First Seat Heater 1. Check for continuity and measure the resistance between No.1 and NO.4 terminals. No.DescriptionNo.Description1Heater (-)3NTC (+)2NTC (-)4Heater (+) Standard value (Fabric / Leather) Cushion : 1.
Inspection Front Seat Heater Switch 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover (A). (Refer to Body - "Console") 3.
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Adaptive Front Lighting System Description and Operation
Description AFLS Unit(ECU) AFLS located in Cockpit Module is provided information of vehicle (steering wheel signal,vehicle speed, inclination of vehicle). Based on provided information , it calculates algorithm and adjust Low beam of H/Lamp. It transmits driving information by using LIN protocol, it is operated in Fail-safe reaction mode
Kia Cadenza YG 2016-2021 Service Manual: Adaptive Front Lighting System Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad side cover (A). [RH] 3. Disconnect the stopper (B) from the glove box (A). 4. Disconnect the air damper (A) from the glove box (B).
