Kia Cadenza: Automatic Transaxle Control System / Shift Cable Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Cable Components and Components Location

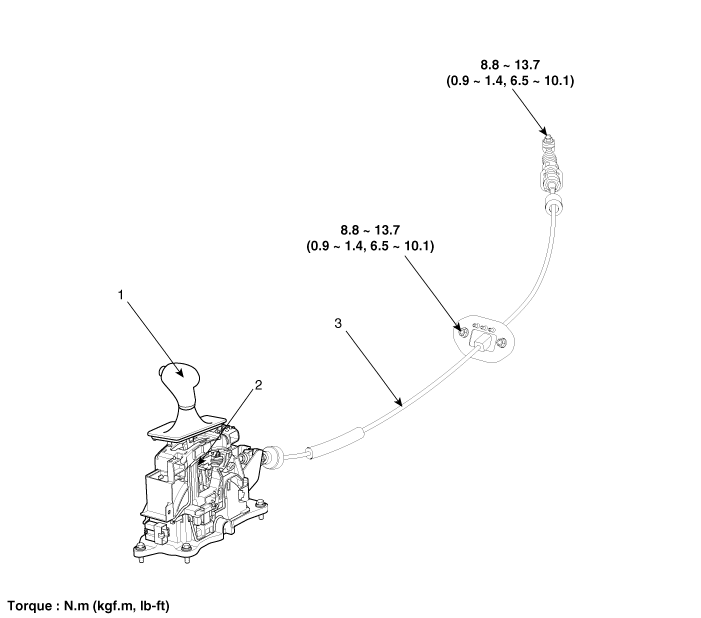

Components

1. Shift lever knob & Boots assembly
2. Shift lever assembly
3. Control cable assembly

Shift Lever Repair procedures
Removal 1. Remove the center console assembly. (Refer to Body - "Floor console") 2. Remove the air duct (A). 3. Disconnect the shift cable (A) and then remove the shift cable (B) afte ...

Shift Cable Repair procedures
Removal 1. Remove the center console assembly. (Refer to Body - "Console") 2. Remove the duct (A). 3. Remove the control cable (B). 4. Disconnect the shift cable (A) and then remove ...
