Kia Cadenza: Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-B Solenoid Valve(ON/OFF) Components and Components Location

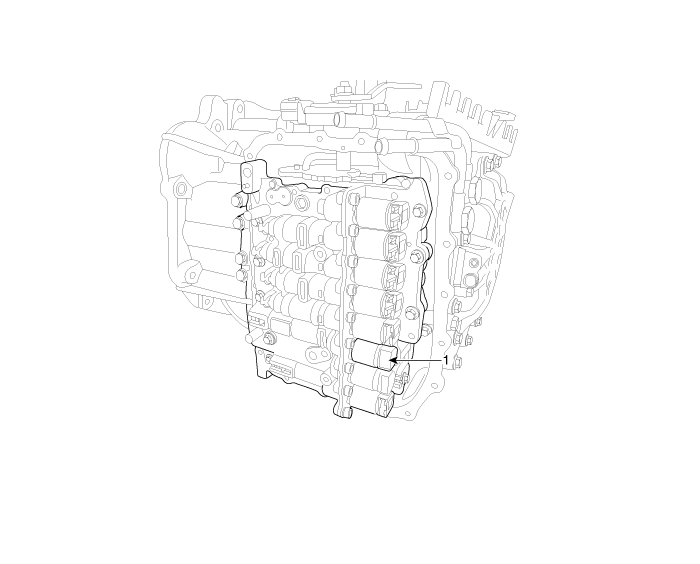

Component Location

1. SS-B Solenoid Valve (ON/OFF)
SS-B Solenoid Valve(ON/OFF) Specifications
Specification ItemSpecificationControl typeON/OFFCurrent value (mA)5.0 Coil resistance(Ω)10 ~ 11  ...

SS-B Solenoid Valve(ON/OFF) Description and Operation
Description • SS-B solenoid valve is ON/OFF type. • When TCM supplies power to solenoid valve, speed range is changed by operating the solenoid valve. SS-B Solenoid Valve op ...
