Kia Cadenza: Interior / Trunk Trim Repair procedures

Kia Cadenza YG 2016-2024 Service Manual / Body (Interior and Exterior) / Interior / Trunk Trim Repair procedures

Replacement

Put on gloves to protect your hands.
When plying with a flat-tip screwd river, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
1.
Remove the trunk trim.
2.
Installation is the reverse of removal.

Replace any damage clips.

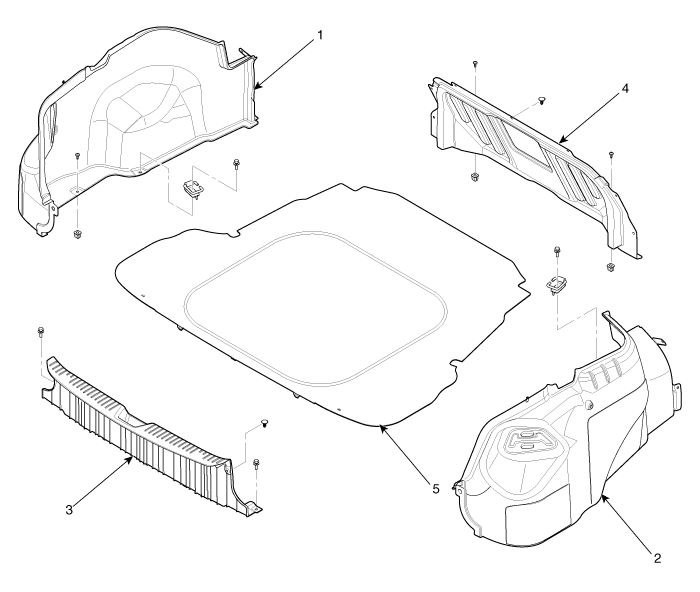

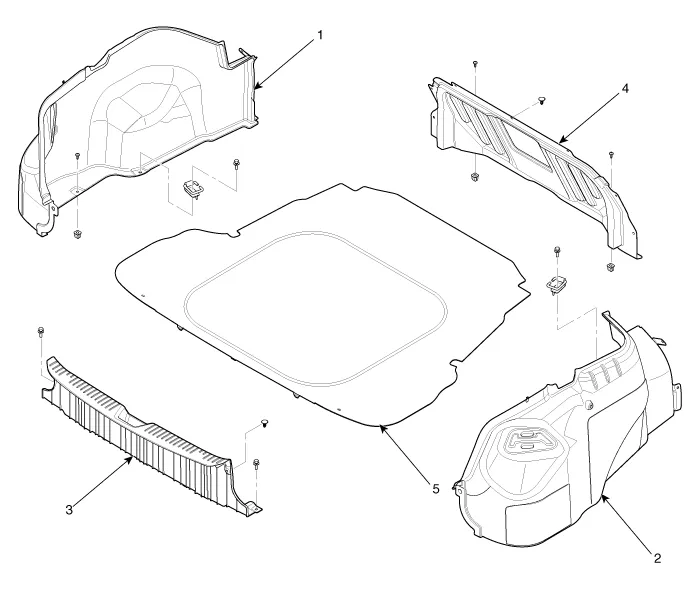

1. Luggage side trim (LH)
2. Luggage side trim (RH)
3. Rear transverse trim
4. Partition lower trim
5. Luggage covering mat & board

Interior Trim Repair procedures
