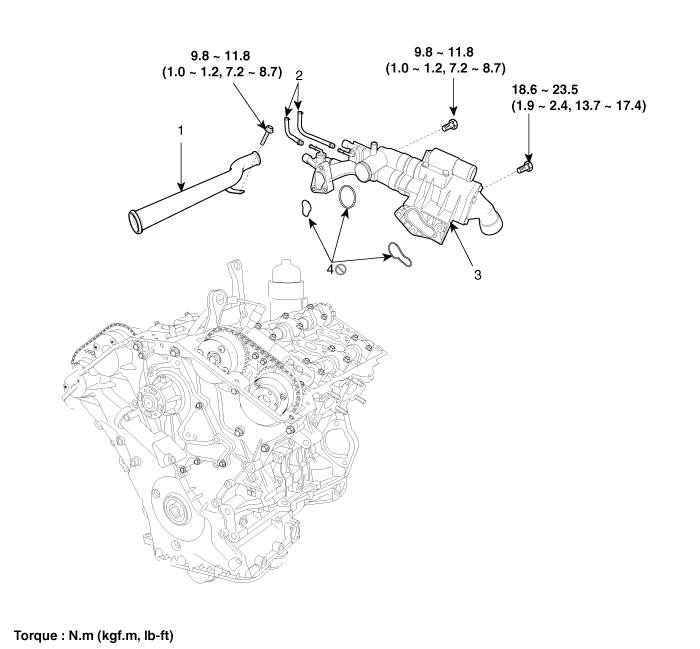

| Components |

| 1. Water pipe 2. Throttle body coolant hose & pipe | 3. Water temperature control assembly 4. O-ring |
Removal and Installation 1. Disconnect the over flow hose (A), and then remove the resorvior tank (B). Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.
Removal and Installation • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Refrigerant System Service Basics Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system. – Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or th
Description 1. The photo sensor is located at the center of defrost nozzle. 2. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic tem
