Kia Cadenza YG: Audio / Components and Components Location

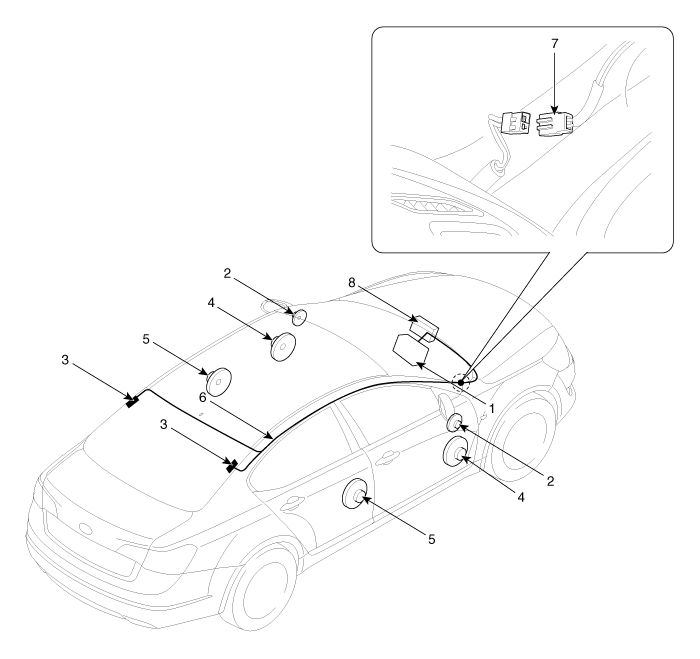

| Component Location |
| 1. Audio unit 2. Front tweeter speaker 3. Glass antenna amplifier (Diversity type) 4. Front door speaker | 5. Rear speaker 6. Antenna feeder cable 7. Feeder cable joint connector 8. Audio monitor |
Specification Audio ItemSpecificationModelRADIO/CD/MP3 (PA30B)Power supplyDC 14.4VRated outputMax 43W x 4Impedanec (Ω)4 ohm x 4Antenna80PF 75ΩTuning typePLL synthesized typeOtherInternal amplifierFrequency range/ Channel spaceFM87.
Components Connector Pin Information Pin No.Connector AConnector BConnector C1Rear left speaker (+)CAN highPower ground2Front left speaker (+)--3Front right speaker (+)--4Rear right speaker (+)Steering wheel remote-5---6-USB D (+)-7-USB/iPod VDDMonitor Rx DP8Illumination (+)AUX right inputMonitor Rx DN9DetentAUX ground-10Rear left speaker (-)MIC (+) (Bluetooth)-11Front left speaker (-)ACC-12Front right speaker (-)Battery (+)R Detect13Rear right speaker (-)CAN low-14---15--Monitor Tx DN16-SpeedMonitor Tx DP17Illumination (-)Remote ground 18Remote antennaUSB D (-)19 iPod/USB ground20AUX Detect21AUX left input22MIC (-) (Bluetooth)23-24Power ground
