Kia Cadenza: Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

Kia Cadenza YG 2016-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

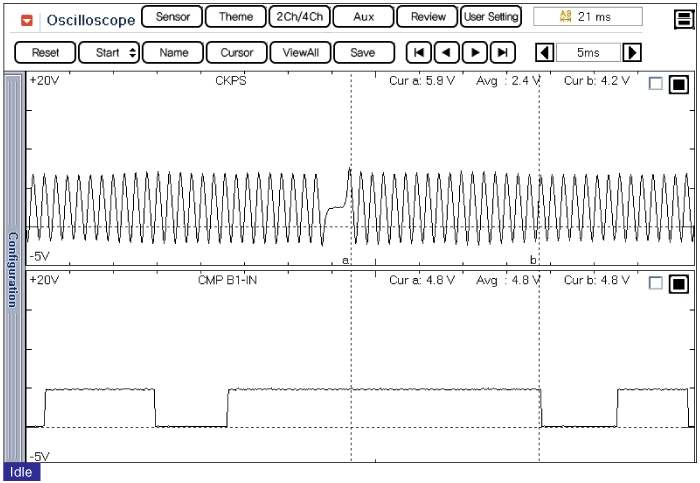

Wave Form

Crankshaft Position Sensor (CKPS) Specifications
Specification ItemSpecificationCoil Resistance (Ω)500 ~ 620 [20°C(68°F)] ...

Crankshaft Position Sensor (CKPS) Schematic Diagrams
Circuit Diagram ...
