Kia Cadenza: Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

Kia Cadenza YG 2016-2024 Service Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

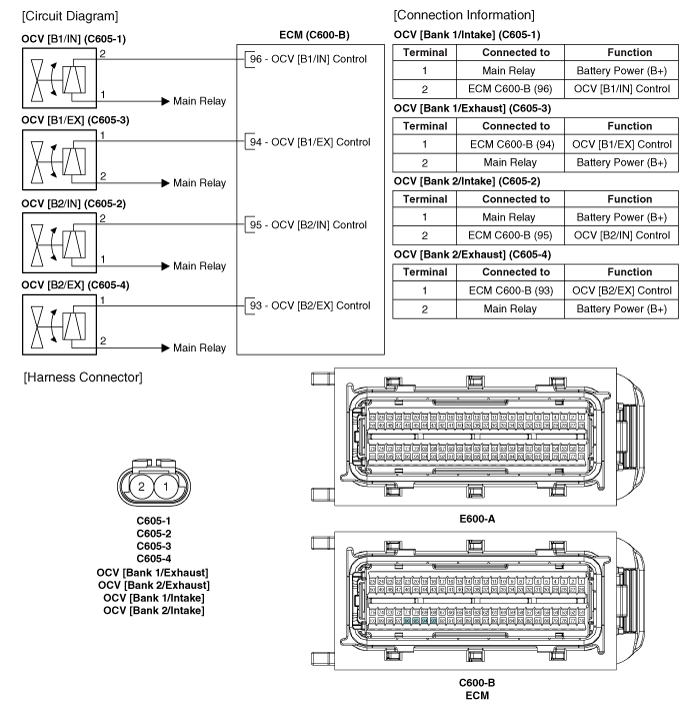

Circuit Diagram

CVVT Oil Control Valve (OCV) Specifications
Specification ItemSpecificationCoil Resistance (Ω)9.4 ~ 10.4 [20°C(68°F)] ...

CVVT Oil Control Valve (OCV) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specifi ...
