Kia Cadenza YG: ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components and Components Location

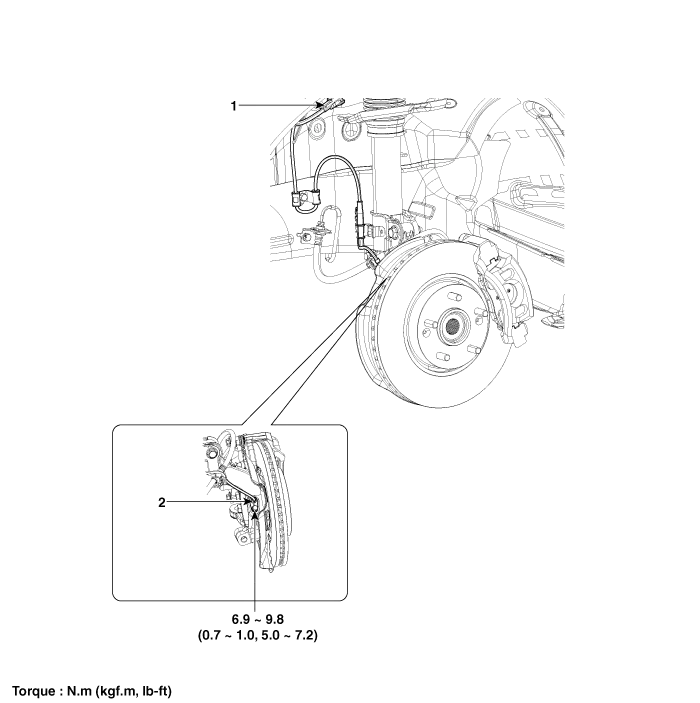

| Components |
| 1. Front wheel speed sensor 2. Front wheel speed sensor connector |
Removal 1. Turn the ignition switch OFF. 2. Remove the air duct (B) and air cleaner assembly (A). 3. Remove the connector and then arrange the wiring harness (A).
Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the front wheel speed sensor mounting bolt (A).
