| Description |
| Heated control unit |

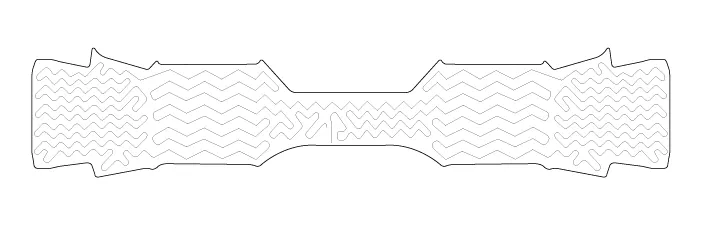

| Heated pad |


| Item | Specification | |||
| Voltage | 13.5 V | |||
| Heated pad resistance | 1.6 ~ 2.0 Ω ± 10% | |||
| NTC resistance | 10.0 kΩ ± 10% (25°C) | |||
| Current | 124A not over | |||
Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead.
System Circuit Diagram Terminal Function HousingPinFunctionWire colorPadAGNDBackBHEATERYellowCNTC+Back / RedDNTC-BackRemotecontrolAGNDBackBBATRedCLEDGreenDSWITCHWhite
Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehicle through the ECM (Reverse Display Room Mirror) mirror or AVN head unit while backing-up.
Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
