| Replacement |
|
| 1. |
Remove the trunk trim. |
| 2. |
Installation is the reverse of removal.
|

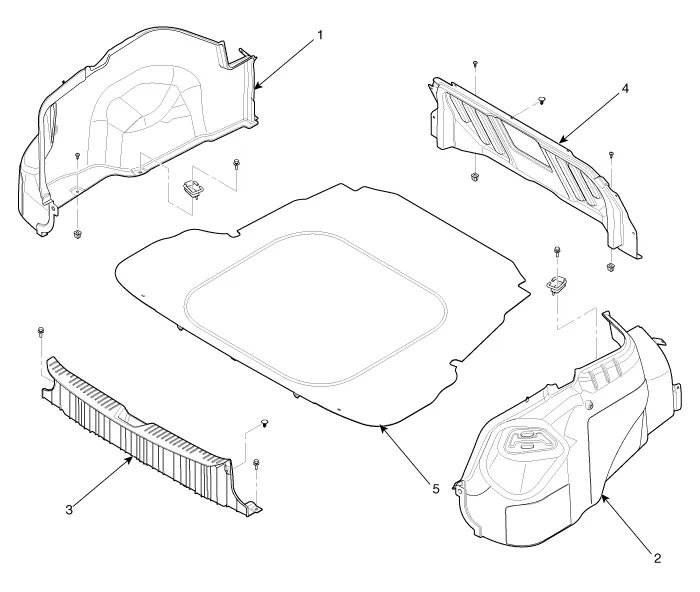

| 1. Luggage side trim (LH) 2. Luggage side trim (RH) 3. Rear transverse trim | 4. Partition lower trim 5. Luggage covering mat & board |
Replacement Door Scuff Trim Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Components 1. Windshield side moulding2. Windshield glass
Component Location 1. Start Stop Button(SSB)2. FOB key3. RF receiver4. Smart key unit5. Interior antenna 16. Interior antenna 2 7. Trunk antenna8. Bumper antenna9. Door handle & door antenna10. Trunk lid open switch11.
Inspection 1. Ignition "OFF". 2. Disconnect the intake actuator connector. 3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding terminal 7. 4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
