Kia Cadenza YG: Electric Power Steering / Components and Components Location
| Components |

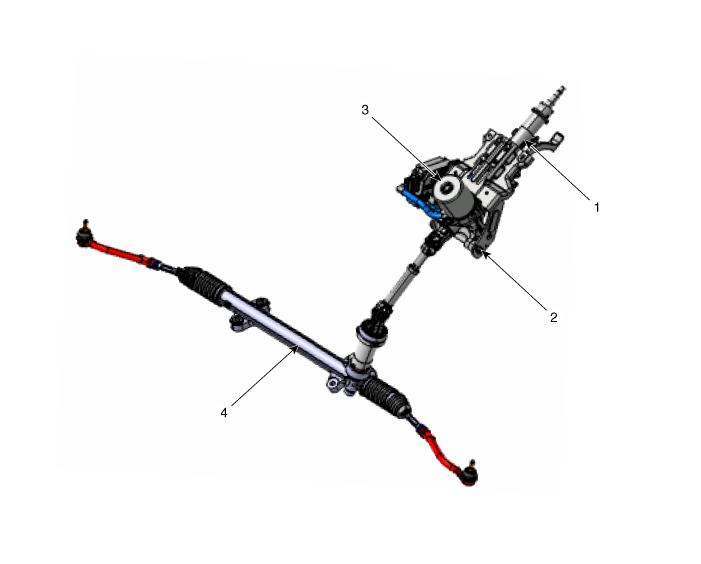

| 1. Steering column 2. ECU | 3. Motor 4. Steering gear box |
Description • EPS (Electric power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering system.
MDPS Circuit Diagram Harness Connector TypePin NoDescriptionBattery1Battery +2Battery -Vehicle1IGN2-3-4-5-6-7High_CAN8Low_CAN
