Kia Cadenza YG: Cooling System / Cooling Fan Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Components and Components Location

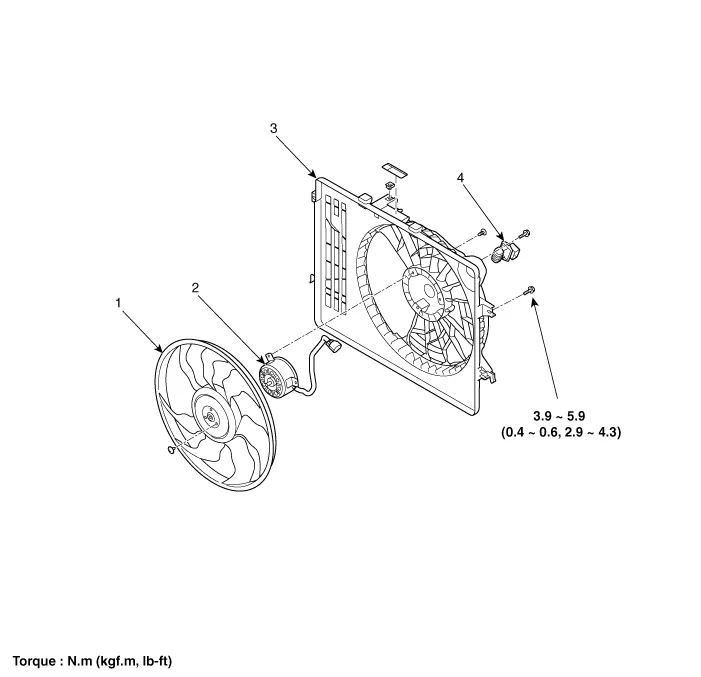

Components

1. Cooling fan
2. Fan motor
3. Fan shroud
4. Resistor

    Replacement And Air Bleeding     Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.

    Description [Air conditioning type] The cooling fan operates in 2 stages (HIGH/LOW). The engine control module (ECM) controls the cooling fan according to the coolant temperature, vehicle speed and A/C operation.
