Kia Cadenza YG: ESC(Electronic Stability Control) System / ESC Control Module Components and Components Location

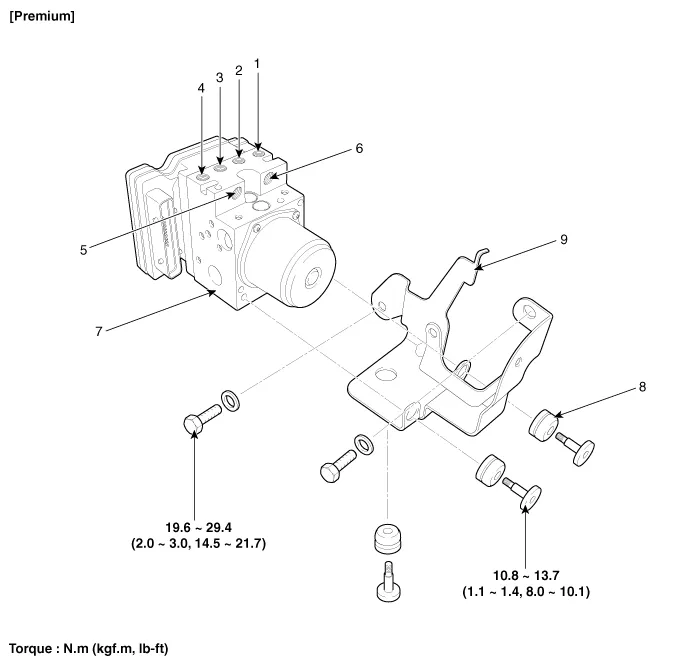

| Components (1) |
| 1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube 5. MC2 | 6. MC1 7. ESC control module (HECU) 8. Damper 9. Bracket |
| Components (2) |
| 1. Front - left tube 2. Rear - right tube 3. Rear - left tube 4. Front - right tube 5. MC2 | 6. MC1 7. ESC control module (HECU) 8. Damper 9. Bracket |
Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels.
Removal 1. Turn the ignition switch OFF. 2. Remove the air duct (B) and air cleaner assembly (A). 3. Remove the connector and then arrange the wiring harness (A).
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Repair procedures
Teaching Procedures 1. Key Teaching Procedure Key teaching must be done after replacing a defective PCM(ECM) or when providing additional keys to the vehicle owner. The procedure starts with an PCM(ECM) request for vehicle specific data (PIN code: 6digits) from the tester.
Kia Cadenza YG 2016-2021 Service Manual: Intake Actuator Repair procedures
Inspection 1. Ignition "OFF". 2. Disconnect the intake actuator connector. 3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding terminal 7. 4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
