Kia Cadenza YG: Interior / Roof Trim Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Interior / Roof Trim Components and Components Location

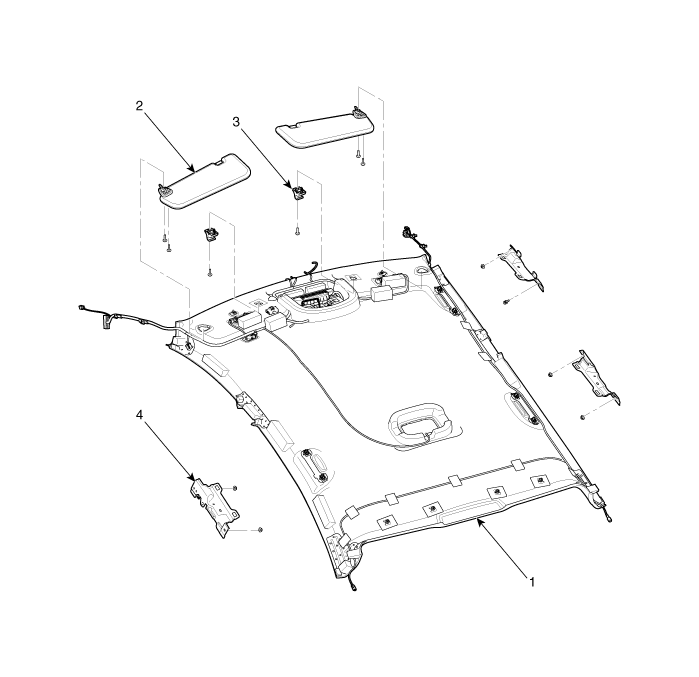

Components

1. Roof trim
2. Sunvisor
3. Retainer
4. Assist handle bracket

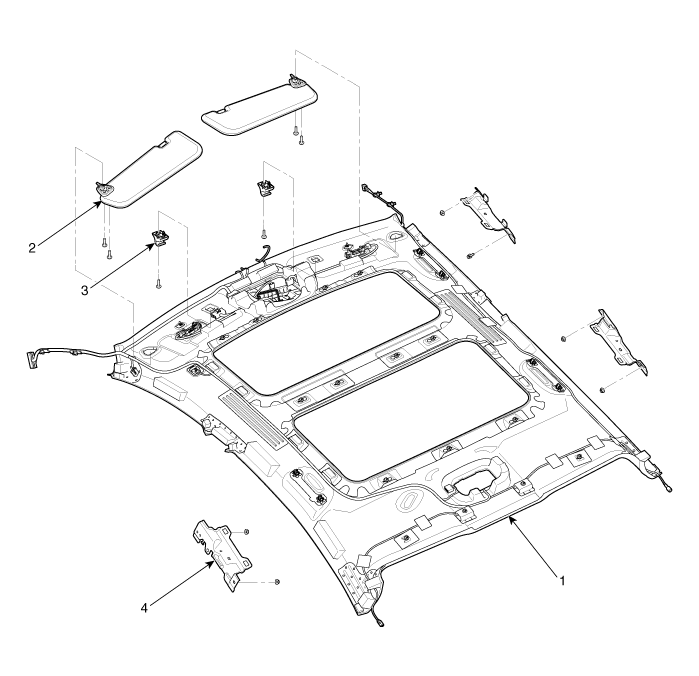

Components (Panoramaroof)

1. Roof trim
2. Sunvisor
3. Retainer
4. Assist handle bracket

    Replacement Cluster Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

    Replacement Sunvisor Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
