Kia Cadenza YG: Automatic Transaxle Control System / Shift Lever Components and Components Location

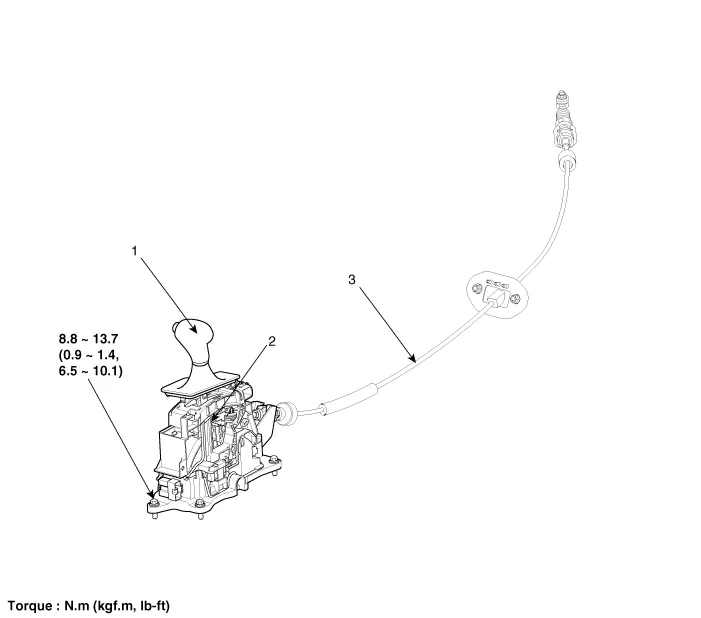

| Components |
| 1. Shift lever knob & Boots assembly 2. Shift lever assembly | 3. Control cable assembly |
Inspection • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Removal 1. Remove the center console assembly. (Refer to Body - "Floor console") 2. Remove the air duct (A). 3. Disconnect the shift cable (A) and then remove the shift cable (B) after pressing the shift cable socket (C) in the direction of "F".
